Free Backfill Material Calculator Online

Backfilling is a crucial step in construction that involves refilling excavated areas with soil, gravel, sand, or other materials to support structures, create drainage, or restore the original ground surface. A Backfill Material Calculator from Construction Calculators helps determine the exact volume and weight of material needed to fill trenches, foundations, retaining wall gaps, or utility channels. Using this tool ensures you order the right amount of backfill—saving both time and cost.

What Is a Backfill Material Calculator?

A Backfill Material Calculator is a tool designed to estimate the volume (in cubic feet, cubic yards, or cubic meters) and weight (in pounds or tons) of the material required to fill a defined area. It considers the dimensions of the excavated space and the type of material used. Contractors, excavators, and site managers rely on it for:

• Foundation backfill
• Pipe trench fill
• Roadbed or driveway restoration
• Wall and basement support

Why Use a Backfill Calculator?

Backfilling with too little material can compromise structural support, while ordering too much can waste money and storage space. A calculator provides:

• Accurate quantity estimates for material ordering
• Simplified budgeting and delivery planning
• Time savings on manual calculations
• Reduced risk of shortfall or excess

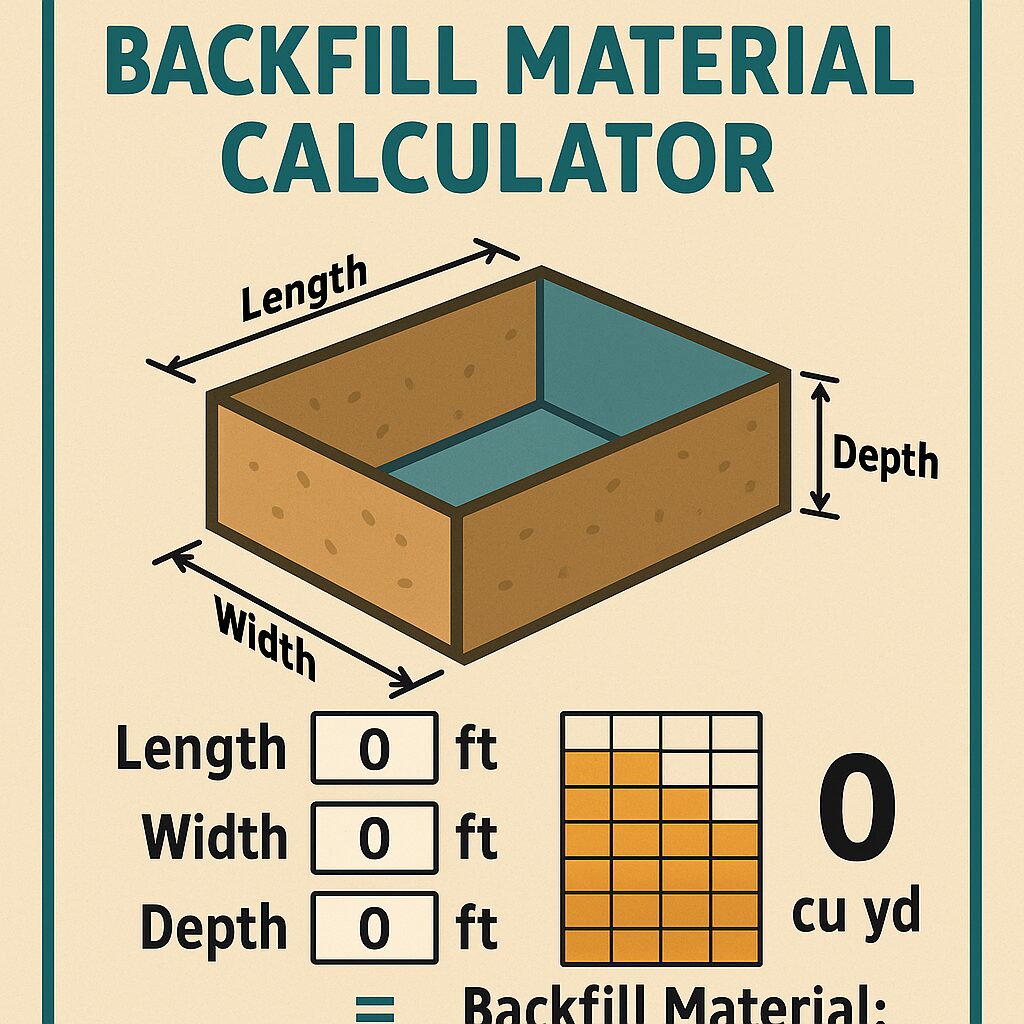

Inputs Required for Backfill Calculation

To get precise results, you’ll need the following:

1. Length (ft or m)
Total horizontal length of the area to be backfilled.

2. Width (ft or m)
The horizontal cross-sectional width, such as the trench width or foundation gap.

3. Depth or Height (ft or m)
Vertical distance to be filled, from the bottom of the trench to the top.

4. Material Type (optional)
This determines the density or unit weight. Common backfill materials include:

• Gravel (~105 lb/ft³)
• Sand (~100 lb/ft³)
• Soil (~95–110 lb/ft³)
• Crushed stone (~100–120 lb/ft³)
• Topsoil (~75–90 lb/ft³)

Backfill Volume Formula

The basic volume formula for a rectangular trench or area is: $$\text{Volume (ft}^3\text{)} = \text{Length (ft)} \times \text{Width (ft)} \times \text{Depth (ft)}$$

To convert to cubic yards: $$\text{Cubic Yards} = \frac{\text{Cubic Feet}}{27}$$

To convert to cubic meters: $$\text{Cubic Meters} = \text{Cubic Feet} \times 0.0283$$

Weight Estimate Formula

Once volume is known, estimate the total weight: $$\text{Weight (lbs)} = \text{Volume (ft}^3\text{)} \times \text{Material Density (lb/ft}^3\text{)}$$

Convert pounds to tons: $$Tons=Weight (lbs)2000\text{Tons} = \frac{\text{Weight (lbs)}}{2000}Tons=2000Weight (lbs)​$$

Example Calculation

Let’s say you’re backfilling a trench that is 100 ft long, 3 ft wide, and 4 ft deep, using gravel at 105 lb/ft³.

Step 1: $$Volume 100×3×4=1200 ft3100 \times 3 \times 4 = 1200 \text{ ft}^3100×3×4=1200 ft3$$

Step 2: $$Convert to cubic yards 120027≈44.44 yd3\frac{1200}{27} \approx 44.44 \text{ yd}^3271200​≈44.44 yd3$$

Step 3: $$Weight in pounds 1200×105=126,000 lbs1200 \times 105 = 126,000 \text{ lbs}1200×105=126,000 lbs$$

Step 4: $$Convert to tons 126,0002000=63 tons\frac{126,000}{2000} = 63 \text{ tons}2000126,000​=63 tons$$

So, you’ll need approximately 44.44 cubic yards or 63 tons of gravel.

Accounting for Compaction and Shrinkage

Different materials compact and settle at different rates. Always add 5% to 15% extra material depending on the job and equipment used. Adjusted Volume=Base Volume×(1+Compaction Factor)\text{Adjusted Volume} = \text{Base Volume} \times (1 + \text{Compaction Factor})Adjusted Volume=Base Volume×(1+Compaction Factor)

For example, if you’re using loose sand with a 10% compaction factor: 1200×1.10=1320 ft31200 \times 1.10 = 1320 \text{ ft}^31200×1.10=1320 ft3

Backfill Volume for Non-Rectangular Shapes

If backfilling a circular hole or bell pier, use the cylinder volume formula: $$\text{Volume (ft}^3\text{)} = \pi \times \left( \frac{\text{Diameter}}{2} \right)^2 \times \text{Depth}$$

If backfilling a triangular cross-section (sloped trench): $$\text{Volume} = \frac{1}{2} \times \text{Base Width} \times \text{Height} \times \text{Length}$$

Backfill Material Densities (Reference)

Tips for Effective Backfill Planning

• Use lifts: Place material in 8″–12″ layers and compact each layer to avoid settling.
• Test moisture: Some soils require water for proper compaction.
• Use equipment: Hand tampers, plate compactors, or rollers based on project size.
• Avoid contamination: Don’t mix different materials in the same trench.
• Install drains: For retaining walls or foundations, ensure drainage is accounted for.

Frequently Asked Questions

How much extra material should I order?
Plan for 10% overage unless material is compacted or placed under strict controls.

What’s the best material for utility trench backfill?
Clean sand or fine gravel is ideal due to its compaction ability and minimal shrinkage.

Can I reuse excavated soil as backfill?
Yes, if it’s free of debris and compactable. But test for moisture and compaction limits.

How many cubic yards fit in a dump truck?
Standard dump trucks carry 10–14 cubic yards. Always verify with your supplier.

Can I use this calculator for landscape beds?
Absolutely. Just treat mulch or soil beds like any backfill area.

Conclusion

A Backfill Material Calculator is a practical tool that simplifies material planning for excavation refills, trench support, and foundational stability. With just a few measurements, you can calculate volume, convert to yards or tons, and plan your material purchase and labor effectively. Whether you’re using gravel, soil, or stone, this tool helps ensure solid support and cost-efficient delivery—making it a must-have on any construction site. Find it on Construction Calculators to streamline your backfill planning and execution or explore additional resources like the Round Pen Calculator and specialized Concrete Calculators for complete material control on any job.
