Building strong and stable foundations starts with accuracy, and that begins with the Concrete Pier Calculator. Whether you’re supporting decks, porches, sheds, or fencing, this calculator gives you the exact amount of concrete required for cylindrical piers. It’s a must-have tool for DIYers and pros who want precise, cost-effective results without waste. Construction Calculators makes it easy to plan and pour with confidence.

What Is a Concrete Pier?

A concrete pier is a vertical column of reinforced concrete poured into a cylindrical hole to support structural loads from decks, porches, or small buildings. These piers are embedded into the ground to provide stable anchoring and distribute weight to the soil. They’re especially useful in areas where frost lines must be considered or soil conditions vary.

Piers can be installed singly or in groups and are typically round, requiring precise concrete volume calculations. That’s where a concrete pier calculator becomes essential it helps determine the cubic feet or cubic yards of material needed to fill one or multiple piers based on their diameter and depth.

Concrete Pier Calculator

Why Accuracy Matters in Pier Construction

Using too little concrete results in incomplete piers, while using too much leads to waste and increased project costs. An accurate concrete pier calculator accounts for:

  • Correct cylinder volume
  • Number of piers
  • Waste margin for overfill and settling
  • Conversion between cubic feet, yards, or inches

This ensures you pour the right amount every time, keeping your construction within budget and code.

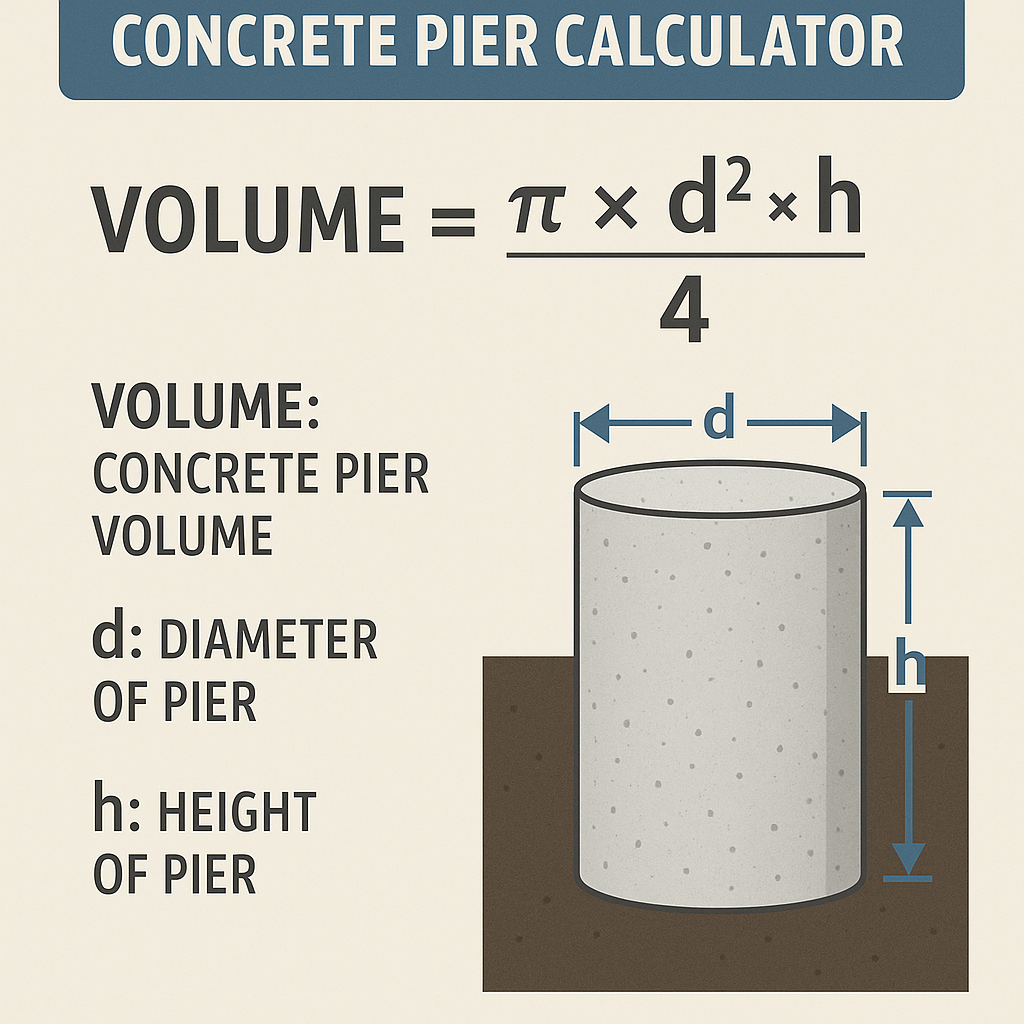

Volume Formula for a Concrete Pier

The formula for calculating the volume of a pier, treated as a cylinder, is: $$\text{Volume} = \pi \times \left( \frac{\text{Diameter}}{2} \right)^2 \times \text{Depth}$$

Where:

  • π (Pi) = 3.1416
  • Diameter = width across the base
  • Depth = vertical height of the pier

To convert cubic feet to cubic yards: $$\text{Cubic Yards} = \frac{\text{Volume in Cubic Feet}}{27}$$

Use this to calculate the total volume of concrete needed for a single pier or multiple piers.

Inputs Needed for the Concrete Pier Calculator

Before calculating, collect the following dimensions:

  • Diameter of the pier hole (in inches or feet)
  • Depth of the pier (from top to bottom)
  • Number of piers you plan to pour
  • Unit of measurement preference (inches, feet, or meters)

These dimensions allow for fast and reliable volume calculations and help estimate materials like cement, gravel, and sand required for the mix.

Example: How to Use the Concrete Pier Calculator

Let’s say you are pouring six piers that are 12 inches in diameter and 4 feet deep.

Step 1: Convert Diameter to Feet

12 inches = 1 foot
Radius = 0.5 feet

Step 2: Calculate Volume of One Pier

$$\text{Volume} = \pi \times 0.5^2 \times 4 = 3.1416 \times 0.25 \times 4 = 3.14 \text{ cubic feet}$$

Step 3: Multiply by Number of Piers

$$\text{Total Volume} = 3.14 \times 6 = 18.84 \text{ cubic feet}$$

Step 4: Convert to Cubic Yards

$$\text{Cubic Yards} = \frac{18.84}{27} \approx 0.70 \text{ cubic yards}$$

Step 5: Add Waste Allowance

$$\text{Total with Waste} = 0.70 \times 1.1 = 0.77 \text{ cubic yards}$$

You’ll need about 0.77 cubic yards of concrete to pour six 12”x4’ piers with a 10% overfill margin.

Estimating Concrete Materials for Pier Mix

If you’re mixing concrete on-site, you need to estimate cement bags, sand, and gravel for your mix ratio (typically 1:2:4). Assume 1 bag of cement covers 1.25 cubic feet.

Cement Volume

$$\text{Cement} = \frac{1}{7} \times \text{Total Volume}$$

Sand and Gravel

$$\text{Sand Volume} = \frac{2}{7} \times \text{Total Volume}$$
$$\text{Gravel Volume} = \frac{4}{7} \times \text{Total Volume}$$

This helps in sourcing materials effectively without shortage or excess.

Benefits of Using the Concrete Pier Calculator

  • Fast and accurate calculations
  • Supports multiple piers in one go
  • Converts between cubic yards, feet, and inches
  • Minimizes concrete waste
  • Reduces manual errors
  • Ideal for contractors, engineers, and DIYers

A manual miscalculation of even 1 inch in diameter or depth can lead to large differences in total volume. The concrete pier calculator avoids that.

Common Projects Requiring Concrete Piers

  • Deck footings
  • Porch columns
  • Shed supports
  • Pergola anchors
  • Fence posts
  • Retaining wall supports
  • Foundation reinforcements

These projects demand load-bearing concrete that’s poured into accurate dimensions, reinforced with rebar, and set into excavated holes or sonotubes.

What Are Sonotubes?

Sonotubes are cylindrical forms made from reinforced paper or cardboard used to shape the concrete during pouring. They ensure the pier stays perfectly round and retains moisture for curing. The concrete pier calculator can calculate volume even when sonotube dimensions are used.

If your pier has a wider base or bell shape, adjust calculations accordingly or consult a structural engineer.

Frequently Asked Questions (FAQs)

What’s the standard depth for a concrete pier?

It depends on frost depth and load. In many U.S. regions, 3–4 feet deep is standard to prevent heaving. Always check local building codes.

How wide should a concrete pier be?

Typical diameter ranges from 8 to 24 inches. Larger structures need wider diameters for load distribution.

Do I need rebar in concrete piers?

Yes, most concrete piers require rebar cages to improve load capacity, reduce cracking, and comply with safety standards.

How long should I let the piers cure?

Allow at least 48–72 hours before applying load. Full curing takes 28 days for maximum strength.

How many bags of cement per pier?

Depends on pier size and mix ratio. For example, a 12”x4’ pier might need 2.5–3 bags per pier using standard 80 lb bags.

Design Considerations for Pier Footings

When designing your pier system, consider:

  • Soil type: Loose or clay soils need wider or deeper piers
  • Load weight: Heavier structures like sheds require deeper embedment
  • Spacing: Too much distance between piers reduces load distribution
  • Height above ground: Taller above-ground piers need lateral support

The calculator only handles volume—you’ll need engineering judgment for structural layout.

Integrating the Pier Calculator with Construction Planning

A pier isn’t just a hole filled with concrete. It’s part of a complete foundation plan. Combine the concrete pier calculator with:

  • Deck beam span calculators
  • Post hole calculators
  • Footing depth estimators
  • Load calculation spreadsheets

This combination ensures your foundation can handle dead loads, live loads, wind uplift, and lateral movement.

Cost Estimation Using the Calculator

Once you know the concrete volume, multiply by local price per cubic yard. For example: $$0.77 \text{ cubic yards} \times \$145/\text{yard} = \$111.65$$

Add delivery charges, labor, and reinforcement costs for a full project estimate.

Final Thoughts

A Concrete Pier Calculator is essential for anyone working on foundational projects. It saves time, eliminates guesswork, and ensures accuracy when estimating the volume of concrete needed for round piers. Whether you’re installing deck footings, porch columns, or shed supports, this tool guarantees that you get the right amount of concrete every time. For complete project planning, you can also rely on tools like the Board Foot Calculator, Cubic Yard Calculator, and Concrete Calculators.

Accurate measurement, understanding of dimensions, and proper calculation are the foundation of any good project literally. Use the calculator, double-check your inputs, and build with confidence.
