Free Rip Rap Calculator Online
When it comes to shoreline protection, erosion control, or drainage channel stability, rip rap is one of the most dependable solutions. But before you haul tons of angular rock to your job site, you need to know exactly how much material to order. That’s where the Rip Rap Calculator comes in—a fast, accurate way to measure the volume, weight, and cost of rip rap needed for your specific construction project. Use the Construction Calculators tool to streamline your estimates and avoid costly material miscalculations.
What Is a Rip Rap Calculator?
A rip rap calculator is a specialized construction tool used to estimate the total volume and weight of stones required to line slopes, embankments, culverts, and shorelines. Rip rap, often made from granite or limestone, is placed strategically to prevent erosion caused by flowing water or wind. The calculator uses inputs like length, width, and depth of the area to provide accurate estimations in cubic yards, tons, and cubic feet.
Contractors and engineers rely on it to avoid over-ordering materials, reduce waste, and ensure code compliance. Whether it’s a road drainage ditch or a coastal reinforcement project, the rip rap calculator helps plan material quantities efficiently and affordably.
Key Inputs Required
Before using the calculator, make sure you have these basic measurements:
- Length of the area to be covered (in feet)
- Width of the area (in feet)
- Depth of the rip rap layer (in inches or feet)
- Material density (varies with rock type but often 1.5–1.7 tons per cubic yard)
With these inputs, the calculator will determine both volume and tonnage required for your rip rap installation.

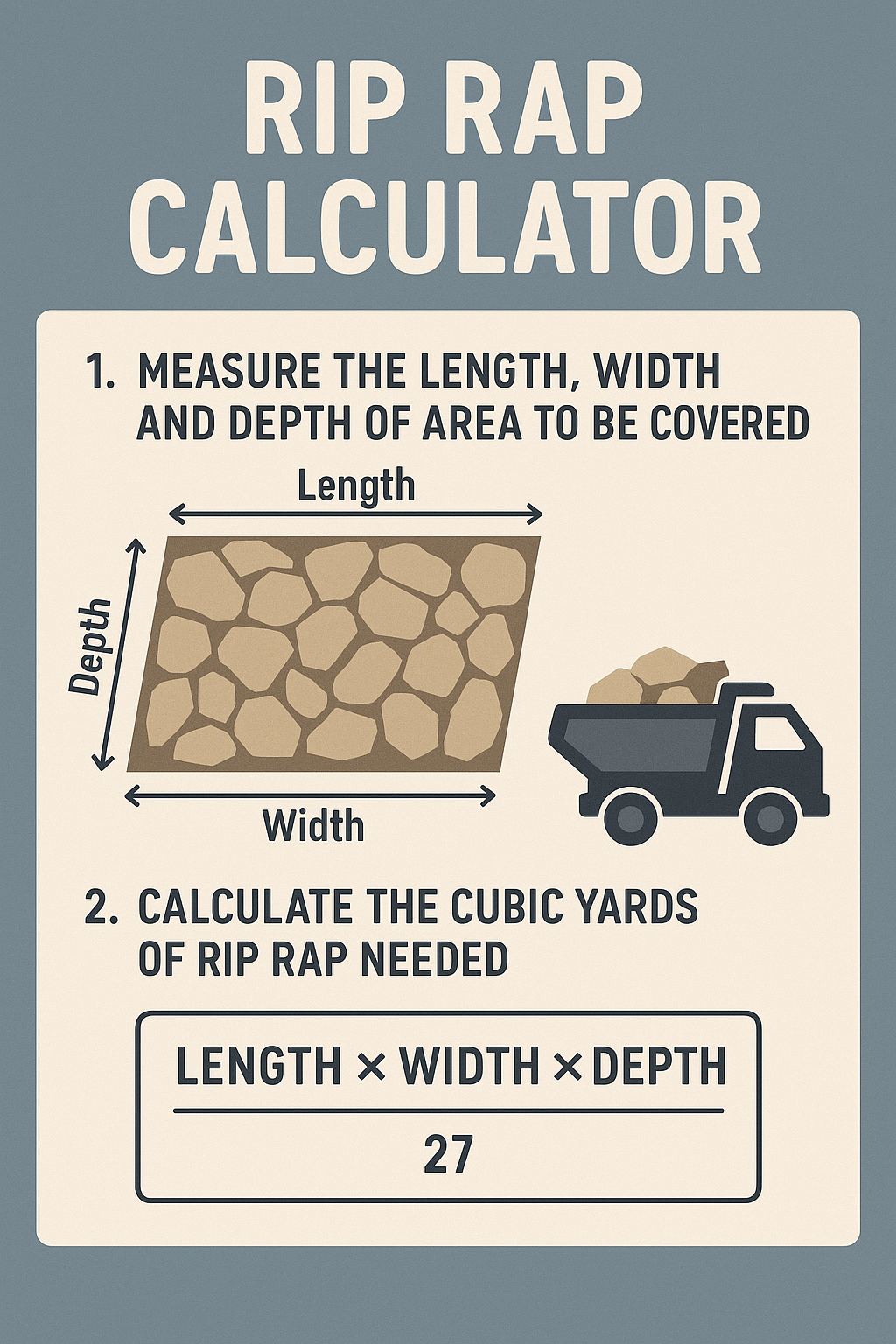

Formula Used by the Rip Rap Calculator
To estimate rip rap volume: $$Volume (cubic feet)=Length (ft)×Width (ft)×Depth (ft)$$
Convert cubic feet to cubic yards: $$\text{Cubic Yards} = \frac{\text{Volume (cubic feet)}}{27}$$
To convert cubic yards to tons (approximate): $$\text{Tons} = \text{Cubic Yards} \times (1.5 \text{ to } 1.7)$$
The range in tonnage accounts for variation in stone size and rock density.
How to Use the Rip Rap Calculator Step by Step
Step 1: Measure the Area
Use a tape or laser measure to determine the length and width of the area where rip rap will be placed. Measure in feet for consistency.
Step 2: Determine Layer Depth
Common rip rap layer thicknesses range from 6 inches to 24 inches. Convert inches to feet for volume calculations: $$Depth (ft)=Depth (in)12\text{Depth (ft)} = \frac{\text{Depth (in)}}{12}Depth (ft)=12Depth (in)$$
Step 3: Calculate Volume
Use the formula to get cubic feet, then convert to cubic yards. This gives you the amount of space the rip rap will occupy.
Step 4: Calculate Weight in Tons
Multiply cubic yards by the average rip rap density (typically 1.6 tons per cubic yard) to get total tons.
Step 5: Add a Waste Margin
Add 5–10% extra to your total to account for irregular shapes, spillage, and compaction.
Example Rip Rap Calculation
Let’s say you need to protect a drainage channel that is:
- 80 feet long
- 5 feet wide
- 18 inches deep
Step 1: Convert Depth to Feet
$$1812=1.5 feet\frac{18}{12} = 1.5 \text{ feet}1218=1.5 feet$$
Step 2: Calculate Volume
$$80×5×1.5=600 cubic feet80 \times 5 \times 1.5 = 600 \text{ cubic feet}80×5×1.5=600 cubic feet$$
Step 3: Convert to Cubic Yards
$$60027≈22.22 cubic yards\frac{600}{27} \approx 22.22 \text{ cubic yards}27600≈22.22 cubic yards$$
Step 4: Convert to Tons
$$22.22×1.6≈35.55 tons22.22 \times 1.6 \approx 35.55 \text{ tons}22.22×1.6≈35.55 tons$$
Step 5: Add 10% Margin
$$35.55×1.1=39.1 tons35.55 \times 1.1 = 39.1 \text{ tons}35.55×1.1=39.1 tons$$
So, for this project, you’ll need around 39 tons of rip rap.
Different Rip Rap Sizes and Applications
Class A (4–8 inches)
- Residential landscaping
- Small culverts
- Slope protection with low flow rates
Class B (6–12 inches)
- Roadside ditches
- Stormwater swales
- Residential erosion areas
Class C and above (12–36 inches)
- Bridge abutments
- Riverbanks
- Coastal defenses
- High-velocity channels
Choosing the right rip rap size ensures stability, proper load bearing, and long-term erosion resistance. Larger stones are often required for high-flow or tidal areas.
Benefits of Using a Rip Rap Calculator
- Saves money by avoiding over-purchasing
- Reduces waste by estimating precise material quantities
- Speeds up planning with accurate results
- Improves safety through proper sizing
- Complies with environmental codes
- Adapts to any construction site or design plan
- Supports sustainable site design with efficient material usage
Material Considerations
Rock Type
Rip rap can be made from:
- Granite (durable and long-lasting)
- Limestone (cost-effective but softer)
- Fieldstone (used for aesthetics)
- Recycled concrete (budget-friendly)
Density
Typical densities:
- Granite: 165 lbs/cu ft
- Limestone: 155 lbs/cu ft
- Concrete: 140–150 lbs/cu ft
The calculator often uses an average of 1.6 tons per cubic yard, but you can customize it based on the rock source.
Design and Installation Tips
- Lay geotextile fabric underneath to prevent soil washout
- Use interlocking placement for stability
- Compact gently with machinery to reduce voids
- Maintain a uniform slope for water flow
- Follow local codes and engineering standards
Correct design and installation help rip rap last for decades, protecting infrastructure and reducing environmental damage.
Comparing Rip Rap with Other Erosion Solutions
| Method | Lifespan | Cost | Maintenance | Use Case |
|---|---|---|---|---|
| Rip Rap | 30–50 years | Moderate | Low | High-velocity flow areas |
| Concrete Lining | 40+ years | High | Moderate | Urban ditches |
| Turf Reinforcement | 5–10 years | Low | High | Light slope erosion |
| Gabions | 25–40 years | High | Low | Riverbanks & steep slopes |
While concrete linings offer durability, rip rap provides a more natural, flexible, and often cost-effective approach, especially when flow dynamics vary seasonally.
Common Questions About Rip Rap Calculators
Q1: How accurate is the rip rap calculator?
It’s extremely accurate when you input correct dimensions and apply the appropriate rock density. Always confirm field measurements for best results.
Q2: Can I use this for rip rap in ponds or lakes?
Yes. For shorelines or embankments under water, it’s crucial to add extra margin for underwater placement and settling.
Q3: Does the calculator account for void spaces between stones?
No. The void ratio is accounted for in your density estimate or by adding a waste margin (usually 10%).
Q4: Is the same formula used for curved or irregular areas?
No. For irregular shapes, break the area into sections and calculate each separately, then combine totals.
Q5: How do I order the correct amount?
After using the calculator, round up to the nearest full ton or truckload and discuss specific site conditions with your supplier.
Final Thoughts
The rip rap calculator is an essential construction calculator for erosion control, slope stabilization, and waterway protection. It provides quick, accurate, and customizable results based on your exact project dimensions, rock density, and design depth. Whether you’re lining a creek, securing a shoreline, or reinforcing a culvert, this tool ensures your project is properly planned and cost-effective from the start. You can also explore other helpful tools like the Board Foot Calculator, Cubic Yard Calculator, and Concrete Calculators to keep your construction planning on track.
For large-scale infrastructure or small-scale drainage improvements, rip rap remains one of the most reliable solutions in modern civil engineering. Let the calculator handle the math—so you can focus on getting the job done right.
