Free Angle Cut Calculator Online
When working on any type of construction, woodworking, or DIY framing project, precision matters. That’s where an angle cut calculator becomes essential. Whether you’re cutting lumber, laying out a roof, framing walls, or building sheds, determining the correct angle cut saves materials, time, and cost.
From calculating roof pitch angles to making accurate joist cuts, this tool helps ensure boards, frames, and base plates align exactly as needed. Whether you’re a contractor or hobbyist, the angle cut calculator is one of the most valuable tools for measuring and adjusting cuts across various materials, dimensions, and construction applications.
Angle Cut Calculator

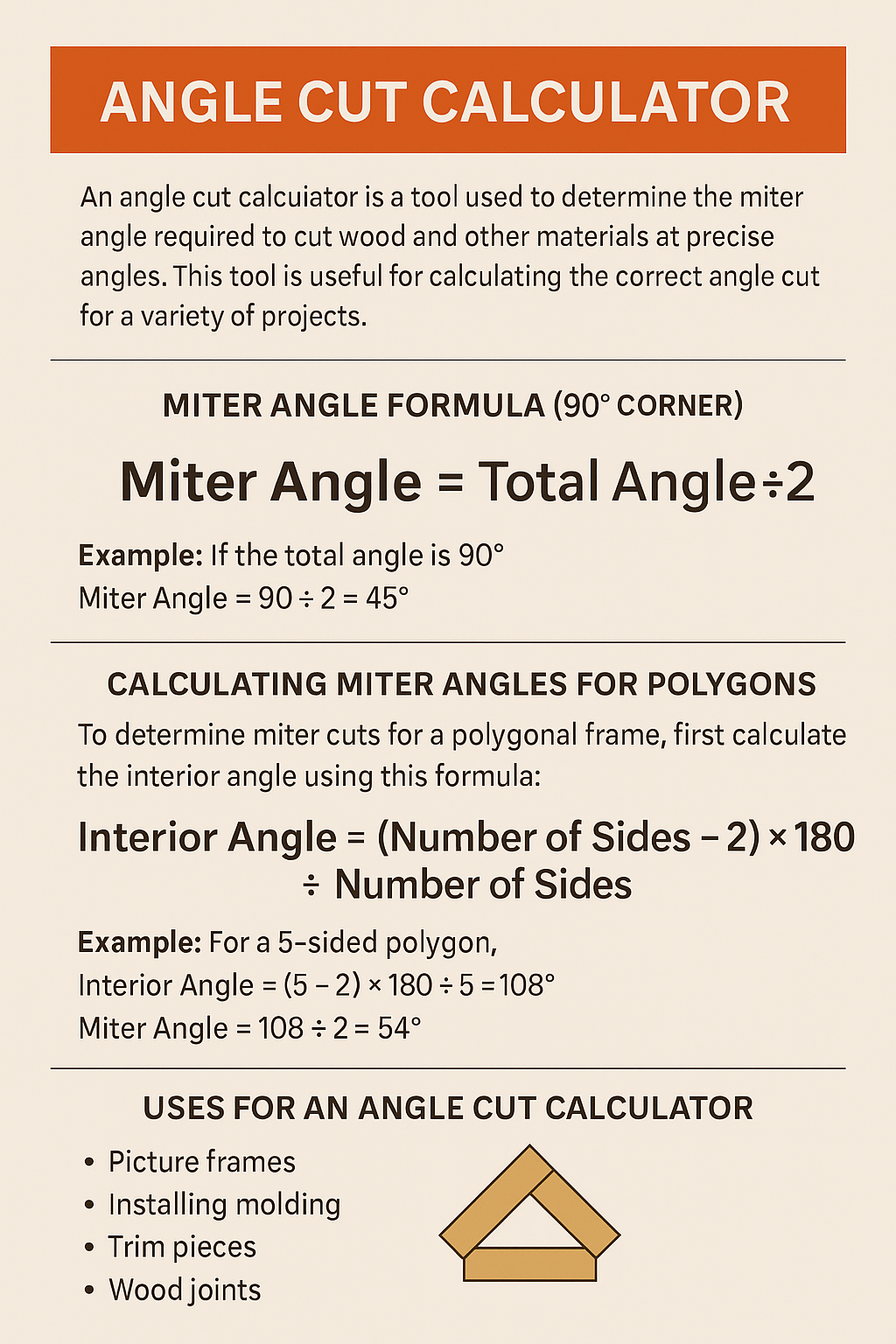

What Is an Angle Cut Calculator?
An angle cut calculator is a tool designed to help users determine the precise angle at which a material typically wood, metal, or composite must be cut to fit within a particular space or layout. It is especially useful in determining miter cuts, bevel cuts, and compound angles when assembling parts of a project such as:
- Roof framing with gable roofs
- Wall framing involving joists and studs
- Creating a shed base, ramp, or foundation frame
- Designing angled shed roofs or pyramid hip tops
- Matching corners in flooring, insulation, or trimming
The calculator uses input values such as length, height, slope, and dimensions to produce a valid cut angle and cutting guide, ensuring consistency and reducing material costs.
Why Accurate Angles Matter in Construction
Cutting incorrect angles can ruin your materials, throw off your budget, and derail your entire project timeline. The right materials are only as good as the right cut. Consider these common real-world needs:
- Framing two boards to form a 90-degree wall corner
- Designing roof rafters that meet at a peak with precise roof pitch
- Installing insulation panels at exact angle cuts for efficient coverage
- Creating floor joists that match edge-to-edge with tight tolerances
- Cutting trim boards where wall dimensions don’t meet at perfect angles
A calculator tool helps manage all of these requirements and ensures a tight fit, optimized material list, and professional finish.
Inputs Required for an Angle Cut Calculator
To get accurate results, the angle cut calculator typically requires several designated fields to be completed. These often include:
- Run (horizontal distance)
- Rise (vertical distance)
- Length of board
- Slope angle or roof pitch
- Wall height
- Width and height of mating surfaces
All input values must be valid numbers, and some calculators support various sizes and units like feet, inches, or centimeters. Using this information, the tool applies geometric formulas (e.g., trigonometric ratios) to return:
- Miter angle
- Bevel angle
- Compound angle
- Cut length
These output values ensure the cutting process is efficient and yields accurate estimates without guesswork.
Practical Applications of the Angle Cut Calculator
The angle cut calculator is used in a wide range of construction and DIY projects, including:
Roof Construction
When designing gable roofs, shed roofs, or pyramid hip roofs, accurate cut angles for rafters are vital. The calculator provides roof area, cutting angles, and total material costs.
Shed Building
From framing walls to cutting the shed ramp, this tool helps calculate every angle required during shed construction. It works with data from your shed material calculator and lumber estimator to guide framing cuts.
Wall Framing
For load-bearing walls, you need precision cuts for studs, joists, and base plates. The calculator ensures the right dimensions and reduces material waste.
Flooring and Insulation
When working with sheetrocks, fiberglass batts, or foam insulation, perfect corner fits require exact angle measurements. Whether you’re dealing with odd-shaped walls or sloped ceilings, this tool handles it.
DIY Projects
Perfect for building tables, sheds, or even custom wood frames, the calculator helps you cut wood, boards, and trim pieces at the ideal angle for assembly.
Formulas Behind Angle Cut Calculations
At the core of every angle cut calculator is trigonometry. Here are common formulas used:
Basic Right Triangle Angle:
Angle (θ)=tan−1(RiseRun)\text{Angle (θ)} = \tan^{-1}\left(\frac{\text{Rise}}{\text{Run}}\right)Angle (θ)=tan−1(RunRise)
Miter and Bevel Angles for Compound Cuts:
$$[
\text{Miter} = \tan^{-1} \left( \frac{\sin(\alpha)}{\tan(\beta)} \right)
]$$
Where:
- α\alphaα = slope angle or pitch
- β\betaβ = wall or board angle
- Rise and Run are taken from your dimensions or design plans
These calculations can get complex when accounting for compound angles, but a calculator tool automates the process and eliminates human error.
Benefits of Using the Angle Cut Calculator
- Reduces material waste
- Saves project time with quick calculations
- Ensures consistent cuts and tight joints
- Optimizes budget by preventing bad cuts
- Assists with creating material lists and tracking costs
- Great for both professionals and DIY users
Sample Calculation
You need to cut a rafter board to connect a wall height of 9 feet to a roof run of 12 feet. The calculator uses: $$[
\theta = \tan^{-1}\left( \frac{9}{12} \right) \approx 36.87^\circ
]$$
So, each rafter needs to be cut at 36.87° to align properly with the slope and form a gable roof. The calculator would also help you:
- Determine roof area
- Estimate material costs
- Provide a material list for framing
- Calculate total square footage
Comparison Table – Angle Cut Scenarios
| Application | Required Angle Type | Key Dimensions Needed | Estimated Tool Output |
|---|---|---|---|
| Gable Roof | Bevel + Miter | Run, Rise, Roof Pitch | Rafter cut angle, rafter length |
| Shed Ramp | Basic angle | Length, Height | Ramp slope angle |
| Wall Framing | Compound angle | Stud height, base length | Base cut angles |
| Insulation Panels | Custom cut angle | Wall width, panel height | Cut corner angle |
| Joist Framing | Right angle | Floor width, joist span | Joist angle cuts |
Integration With Other Construction Tools
The angle cut calculator works best when used alongside:
- Shed Material Calculator
- Lumber Estimator
- Cost Calculator
- Material List Calculator
- Square Footage Tool
- Wall Area Estimator
- Roof Pitch Calculator
- Joist Span Chart
Together, these tools provide a comprehensive construction planning suite, ensuring accurate estimates, proper sizing, and minimal waste across your entire building project.
Common FAQs
Q1: Can I use this calculator for metal or plastic boards?
Yes, the calculator works with any material wood, metal, plastic, or composite as long as measurements are correct.
Q2: Does it support various pitch types like shed roofs and hip roofs?
Absolutely. You can select roof pitch, roof type, and dimensions to calculate the precise angle for all structural components.
Q3: How does this help with budgeting?
By reducing material waste and giving accurate cuts, you’ll avoid buying unnecessary lumber or replacement boards.
Q4: What if I input the wrong size?
The calculator checks for necessary criteria and valid numbers before processing. Errors are flagged, helping users correct before cutting.
Q5: Does it include insulation and finishing materials?
While its focus is on angles and cuts, when integrated with a material calculator, it can estimate sheetrock, foam, and fiberglass insulation fits.
Final Thoughts
Whether you’re cutting a single board or framing an entire shed, the angle cut calculator takes the guesswork out of one of the most crucial parts of construction. From shed ramps to roof structures, accurate cut angles ensure strong joints, seamless fits, and efficient building processes.
Backed by geometric formulas and tailored for both professional and DIY applications, this tool supports your material selection, enhances project planning, and guarantees better results next time you cut.
