Free Crane Lifting Capacity Calculator Online

When working with heavy loads in construction, logistics, shipping, or manufacturing, crane safety is paramount. Knowing a crane’s lifting capacity is not just about raw power it’s about safety, efficiency, and engineering precision. That’s where the crane lifting capacity calculator comes into play. This tool helps project managers, site engineers, and crane operators determine the maximum load a crane can safely lift, factoring in boom angle, load radius, weight distribution, counterweights, and lift height.

This guide covers everything you need to know about calculating crane capacity, including essential formulas, influencing factors, and how to use the calculator effectively.

Crane Lifting Capacity Calculator

Understanding Crane Lifting Capacity

Lifting capacity refers to the maximum weight a crane can lift under specific conditions without tipping or structural failure. It varies depending on several factors:

  • Boom length and angle
  • Load radius
  • Counterweights
  • Crane configuration
  • Load type and rigging
  • Ground conditions and crane stability

A crane lifting capacity calculator uses a mix of geometric and physics-based formulas to determine whether a lift is feasible.

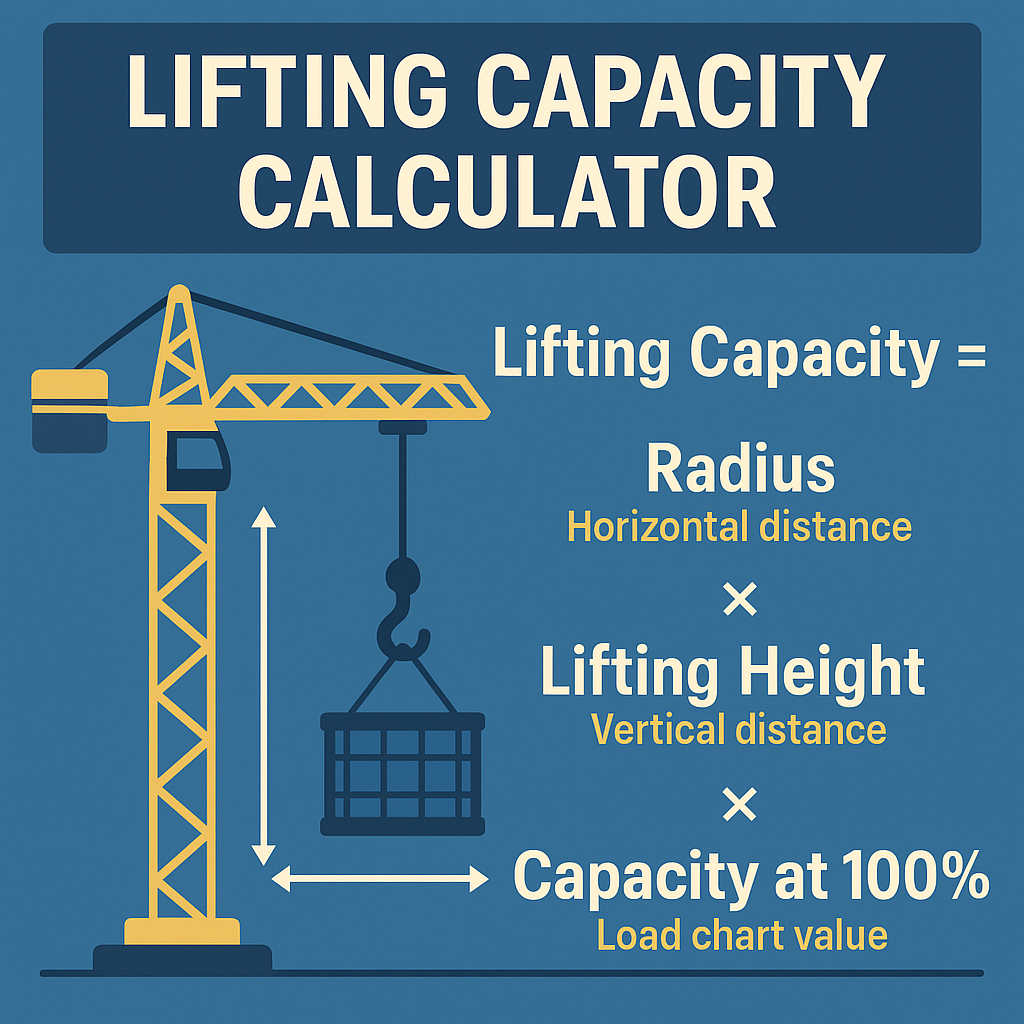

crane lifting capacity calculator

Why Use a Crane Lifting Capacity Calculator?

Using a crane beyond its rated capacity can cause tipping, structural damage, or catastrophic failure. The calculator ensures:

  • Accurate load planning
  • Safety compliance with OSHA and ASME standards
  • Efficient equipment utilization
  • Reduction of overloading risks
  • Smart crane selection for each job

It’s used across industries like construction, shipyards, factories, steelworks, and high-rise developments.

Inputs Required for Accurate Calculation

To use a crane lifting capacity calculator, the following values are needed:

  • Load weight (W)
  • Boom length (L)
  • Boom angle (θ)
  • Radius from center of rotation (R)
  • Crane configuration type (crawler, tower, mobile)
  • Counterweight (CW)
  • Ground conditions or outrigger spread
  • Lift height and direction (vertical or offset)

Key Factors That Affect Crane Capacity

1. Load Radius (R)

The horizontal distance between the center of rotation and the load. The longer the radius, the less weight the crane can safely lift.

2. Boom Length and Angle

Longer booms reduce lifting capacity. The angle of the boom also determines vertical vs. horizontal reach.

3. Counterweights (CW)

Counterweights improve stability and increase lifting capacity. They’re essential in offsetting the load torque.

4. Crane Type and Setup

Crawler cranes may lift more due to better stability. Mobile cranes require full outrigger deployment for maximum rated loads.

5. Sling and Rigging Configuration

Single-point and multi-point lifts distribute weight differently and affect the effective load at the hook.

Essential Crane Capacity Formulas

The crane lifting capacity is derived using basic physics and geometry.

1. Load Moment Calculation

Load Moment $$(kNm)=Load (kN)×Radius (m)\text{Load Moment (kNm)} = \text{Load (kN)} \times \text{Radius (m)}Load Moment (kNm)=Load (kN)×Radius (m)$$

This measures the overturning force exerted by the load. It must not exceed the crane’s rated load moment.

2. Rated Capacity Based on Load Chart

$$Rated Capacity=Rated Load MomentRadius\text{Rated Capacity} = \frac{\text{Rated Load Moment}}{\text{Radius}}Rated Capacity=RadiusRated Load Moment​$$

This is extracted from crane load charts provided by manufacturers and varies with boom length and angle.

3. Effective Lifting Capacity with Safety Factor

$$Safe Lifting Capacity=Theoretical CapacitySafety Factor\text{Safe Lifting Capacity} = \frac{\text{Theoretical Capacity}}{\text{Safety Factor}}Safe Lifting Capacity=Safety FactorTheoretical Capacity​$$

Where:

  • Safety Factor is typically between 1.25 and 2.0 depending on site risk levels

4. Crane Tipping Load Limit

$$Tipping Load Limit=Counterweight×Counterweight ArmLoad Radius\text{Tipping Load Limit} = \text{Counterweight} \times \frac{\text{Counterweight Arm}}{\text{Load Radius}}Tipping Load Limit=Counterweight×Load RadiusCounterweight Arm​$$

This equation ensures the crane remains stable during operation.

Example: Lifting a Load with a Mobile Crane

Let’s say a crane needs to lift a 10-ton load (10,000 kg) using a 20-meter boom set at a 45° angle. The load radius is 12 meters.

Convert the weight to kN: $$W=10,000 kg=10 tons=98 kN(approx)W = 10,000 \, \text{kg} = 10 \, \text{tons} = 98 \, \text{kN} \quad (\text{approx})W=10,000kg=10tons=98kN(approx)$$

Now compute the load moment: $$Load Moment=98 kN×12 m=1,176 kNm\text{Load Moment} = 98 \, \text{kN} \times 12 \, \text{m} = 1,176 \, \text{kNm}Load Moment=98kN×12m=1,176kNm$$

If the crane’s rated load moment is 1,500 kNm at 12m radius, it’s within limits. Always apply a safety factor: $$Safe Load=1,5001.5=1,000 kNm(example)\text{Safe Load} = \frac{1,500}{1.5} = 1,000 \, \text{kNm} \quad (\text{example})Safe Load=1.51,500​=1,000kNm(example)$$

In this case, the load exceeds the safe limit. Either a shorter radius or a higher-capacity crane is needed.

Crane Load Charts and Software Integration

Modern crane lifting capacity calculators are often integrated with digital load charts. These are customized for:

  • Tower cranes
  • Mobile telescopic cranes
  • Crawler cranes
  • All-terrain cranes

Some platforms allow uploading data directly from manufacturers or even simulating lifts in 3D with inputs like wind load, ground pressure, and rigging angle.

Real-World Applications

Construction Sites

Lifting steel beams, HVAC units, concrete panels, and glass curtain walls.

Shipyards

Placing heavy ship parts, motors, or containers with variable boom reach.

Manufacturing

Installing industrial equipment or heavy-duty machinery.

Utility and Maintenance

Lifting transformers, utility poles, or telecommunication towers.

Each application has different crane setup configurations. The calculator allows flexibility for customized lifts.

Safety Tips When Using Lifting Calculators

  • Always confirm load weight including rigging
  • Check wind speed and boom deflection
  • Use certified riggers and signal persons
  • Read the actual crane’s load chart before use
  • Never exceed 85% of rated capacity without formal engineer sign-off
  • Use ground mats on soft or uneven terrain

Integrating Crane Lift Calculators in Planning

Site engineers and planners now include crane calculations in:

  • BIM Models
  • 3D CAD lift plans
  • Daily lift sheets
  • Mobile apps with load chart access

JavaScript-based browser calculators are widely used in field operations. These tools simplify daily lift planning and reduce errors during critical lifts.

Advantages of Using the Crane Lifting Capacity Calculator

  • Instant calculation of safe load limits
  • Prevents overloads and crane tip-over incidents
  • Ensures compliance with lifting regulations
  • Saves time in pre-lift planning
  • Supports informed decision-making during lift configuration

Using this tool means fewer mistakes and safer, more efficient lifts on every job site.

Frequently Asked Questions

1. Does the boom angle affect lifting capacity?
Yes, smaller angles increase the radius and reduce capacity. Higher angles offer stronger lifting performance.

2. Can ground conditions reduce lifting power?
Absolutely. Uneven or soft soil affects crane stability, especially without outriggers or mats.

3. How do I include the weight of rigging gear?
Always add the rigging gear’s weight to your total load when calculating.

4. Are counterweights included in the calculator?
Most tools allow counterweight selection, but double-check that yours does.

5. What’s the standard safety factor for crane lifts?
Typically between 1.25 to 1.5, but critical lifts may require a factor of 2.0 or higher.

Conclusion

A crane lifting capacity calculator is more than a helpful tool it’s a safety essential. By inputting accurate data like boom angle, radius, and load weight, users can estimate whether a lift can be performed within safe limits. Whether you’re lifting steel beams, HVAC units, or containers, the right calculation prevents accidents and ensures job site success.

With formulas based on physics and real-world load chart data, these calculators are widely used in industries where every lift counts. Integrating such tools into your planning process not only protects personnel and equipment but also saves time, reduces liability, and improves operational efficiency.

Make the smart move. Use a crane lifting capacity calculator before your next lift and make every load count.
