Free Critical Path Method Calculator Online
In project management, timing is everything. One missed deadline can cascade into weeks of delays, cost overruns, and unhappy stakeholders. That’s where the Critical Path Method Calculator comes in a tool that helps project managers, schedulers, and planners identify the longest path of dependent tasks in a project, enabling timely and strategic decision-making.
The critical path method (CPM) is a proven technique used in construction, software development, event planning, and any other field that requires managing activities, dependencies, and resources over a timeline.
Critical Path Method (CPM) Calculator
What Is the Critical Path Method?
The Critical Path Method (CPM) is a project management technique that maps out every activity, task, and dependency involved in a project. It calculates the longest sequence of dependent tasks (the critical path) that determines the minimum duration required to complete the entire project.
The critical path is the set of tasks that must be completed on time any delay here delays the entire project.
What Does the Critical Path Method Calculator Do?
A Critical Path Method Calculator is a digital tool used to:
- Calculate start time and finish time of each task
- Identify early start, late finish, and slack time
- Create a CPM diagram or PERT chart
- Analyze multiple dependencies between tasks
- Find the overall project duration
- Assist with resource allocation and schedule optimization
This calculator handles complex projects by visualizing the project network, highlighting task durations, and generating actionable insights.
Core Terms in CPM
| Term | Definition |
|---|---|
| Activity | A specific task or job in a project |
| Node | A point representing a task’s start or end |
| Path | A sequence of activities between two nodes |
| Critical Path | The longest duration path with zero float |
| Float/Slack | Permissible time a task can be delayed without delaying the project |
| Early Start (ES) | Earliest time a task can begin |
| Early Finish (EF) | Earliest time a task can end |
| Late Start (LS) | Latest a task can begin without delaying project |
| Late Finish (LF) | Latest a task can end without delay |
How to Use a Critical Path Method Calculator
Step-by-Step Process:
- List All Activities
Input every task involved in the project. Each should include a unique name, duration, and dependencies (which tasks must come before). - Estimate Durations
Enter the possible duration of each task in days or hours using past data, expert input, or estimation techniques. - Define Dependencies
Identify which activities depend on others. This is key for building the project network. - Create the CPM Diagram
The calculator will automatically generate a CPM chart or PERT chart, showing the sequence of activities and critical paths. - Analyze the Critical Path
The critical path is highlighted. These are the tasks with zero float delays here affect the entire project. - Optimize Schedule
Use the data to:- Allocate resources
- Shift non-critical activities
- Monitor early finish times
- Plan for bottlenecks
Example: Basic CPM Calculation
Let’s say we have the following project activities:
| Task | Duration (Days) | Dependencies |
|---|---|---|
| A | 2 | None |
| B | 4 | A |
| C | 3 | A |
| D | 1 | B, C |
Step 1: Build the Network
Task A → B & C → D
Step 2: Calculate Timeframes
- A: ES = 0, EF = 2
- B: ES = 2, EF = 6
- C: ES = 2, EF = 5
- D: ES = 6, EF = 7
Critical Path: A → B → D = 7 days
The critical path method calculator identifies this as the longest path with no slack.
Applications Across Industries
1. Construction Projects
Used by project managers to plan resource usage, labor, and equipment schedules with accurate timelines.
2. Software Development
Manages code deployment, feature builds, and testing cycles in agile workflows.
3. Event Planning
Organize event setups, vendor coordination, and publicity tasks leading up to a specific deadline.
4. Manufacturing
Ensures smooth flow of assembly line activities, raw material delivery, and packaging with minimal delays.
Benefits of Using a CPM Calculator
- Identify bottlenecks early
- Visualize project completion date
- Calculate float and early finish times
- Get precise time values for each activity
- Make data-driven decisions
- Reduce project delays and cost overruns
- Input into Excel, PERT diagrams, or Gantt charts
Critical Path Method vs. PERT
| Feature | CPM | PERT |
|---|---|---|
| Task Durations | Deterministic | Probabilistic |
| Use Case | Construction, Engineering | R&D, Software, Events |
| Time Estimation | Single-value durations | Range-based estimation |
| Focus | Time & Cost | Time Only |
You can use a CPM calculator with PERT charts to combine early start, late finish, and dependencies in a visual tool.

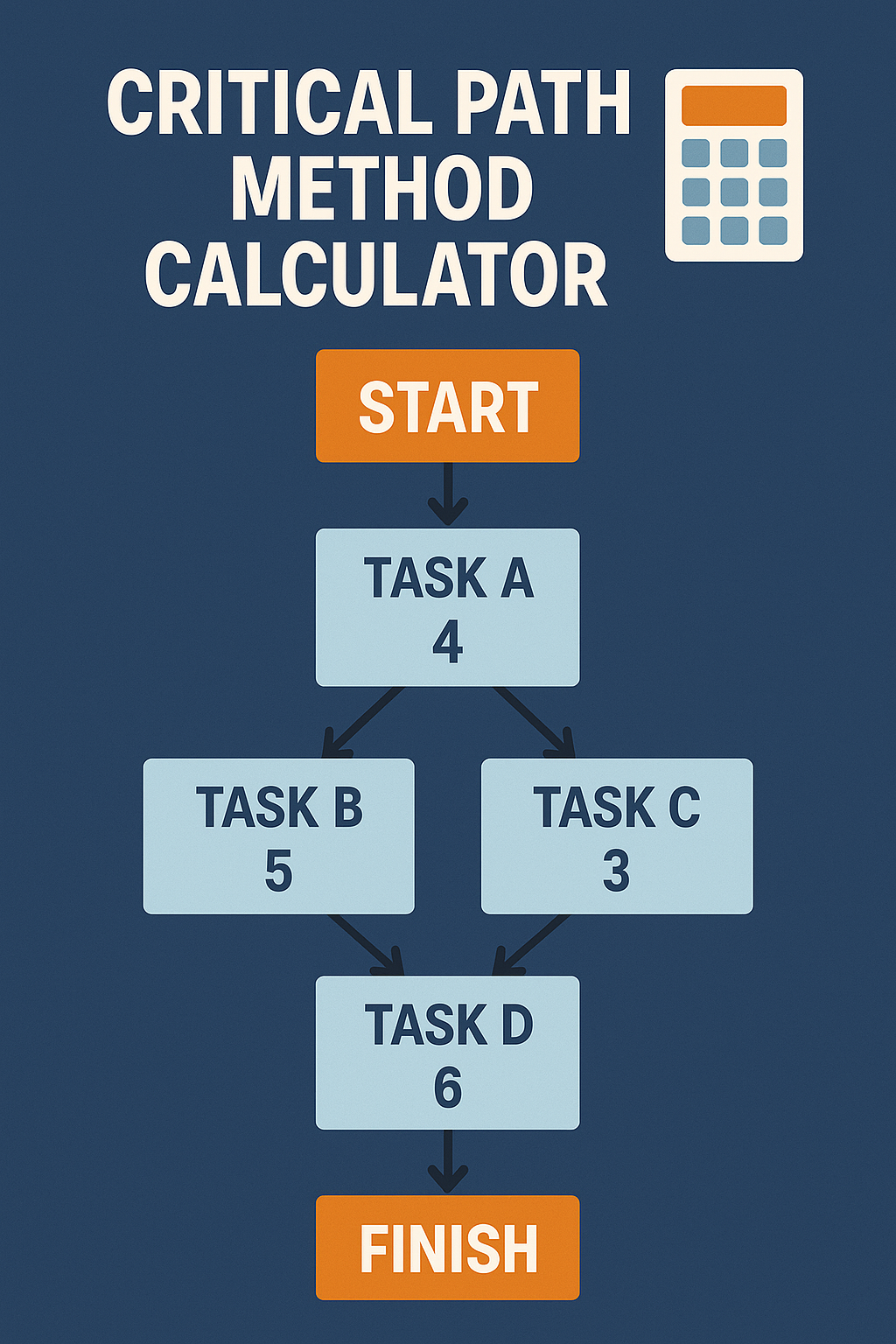

Critical Path Diagram and Network Chart
A typical CPM diagram includes:
- Nodes representing tasks
- Arrows showing dependencies
- Time values for start, finish, and slack
- Highlighted critical paths (usually in red)
This graphical representation makes it easier for stakeholders to understand the overall timeline of the project.
Using Excel Templates for CPM
Many project managers use Excel to:
- Build custom CPM calculators
- Generate project network diagrams
- Calculate float, early finish, and completion dates
Look for critical path method Excel templates that include columns for:
- Task names
- Durations
- Dependencies
- ES, EF, LS, LF
- Float or Slack
Common Mistakes to Avoid
- Missing Dependencies
Overlooking task relationships causes incorrect paths. - Inaccurate Durations
Unrealistic inputs distort the CPM diagram. - Ignoring Slack Time
Tasks with slack can absorb delays—but only if managed properly. - Failing to Update
Regularly update the calculator to reflect project changes. - Too Many Float Assumptions
Assuming all tasks have float reduces risk visibility.
CPM in Project Management Software
Many modern tools like Microsoft Project, Asana, ClickUp, and Smartsheet integrate built-in CPM scheduling features. These offer:
- Real-time updates
- Visual timelines
- Resource leveling
- Gantt chart overlays
- Exportable templates
However, even with software, a dedicated CPM calculator ensures detailed path analysis.
Related Tools and Concepts
- PERT Chart Generator
- Float Calculator
- Project Completion Predictor
- CPM Diagram Builder
- Schedule Optimizer
- Slack Time Finder
These online calculators and CPM templates speed up complex project planning.
Final Thoughts
The Critical Path Method Calculator is not just a technical tool it’s a strategic asset. It brings clarity to project timelines, highlights task sequences, and empowers project managers to make smarter decisions. Whether you’re managing a construction project, designing software, or coordinating a corporate rollout, CPM ensures every piece fits.
By using this tool, you can:
- Visualize the entire project timeline
- Discover your critical path
- Calculate all task durations and float
- Plan the most efficient path to completion
- Make room for risks, changes, and parallel workstreams
Summary Table of Formulas
| Calculation | Formula |
|---|---|
| Early Finish (EF) | $$EF = ES + Duration$$ |
| Late Start (LS) | $$LS = LF – Duration$$ |
| Float | $$Float = LS – ES or LF – EF$$ |
| Critical Path | $$Longest path with Float = 0$$ |
| Project Duration | $$Max of all EF values in the path$$ |
